Raceworks Deutsch Hdp20 Series

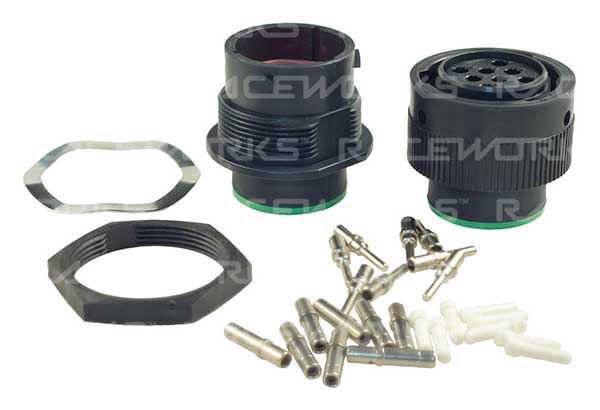

Shell size 18. 8 x Size 12 Contacts Green Ring Normal Wire Seal. For use with Standard Insulation Wire (Recommended O.D of 3.40-4.32mm) Mounting hole diameter – 38mm CPS-504 Information Series HDP20 Housing Thermoplastic Seal Silicone Rubber Shock 50G Vibration 20G rms 10 – 2000Hz Operating Temperature -55deg C to 125deg C Size 12 Contacts Wire Size 12-14 AWG (2.0-3.0 mm^2) Recommended Strip Length 5.6-7.2mm Current Rating 25A @ 125deg

Part Number:

CPS-504 - Hdp20 18-8

CPS-506 - Hdp20 24-16

CPS-508 - Hdp20 24-19

CPS-510 - Hdp20 24-21

CPS-512 - Hdp20 24-23

CPS-514 - Hdp20 24-29

CPS-516 - Hdp20 24-31

CPS-534 - Hdp20 18-14

CPS-536 - Hdp20 18-21

CPS-538 - Hdp20 24-47
