2-4 Week Lead Time

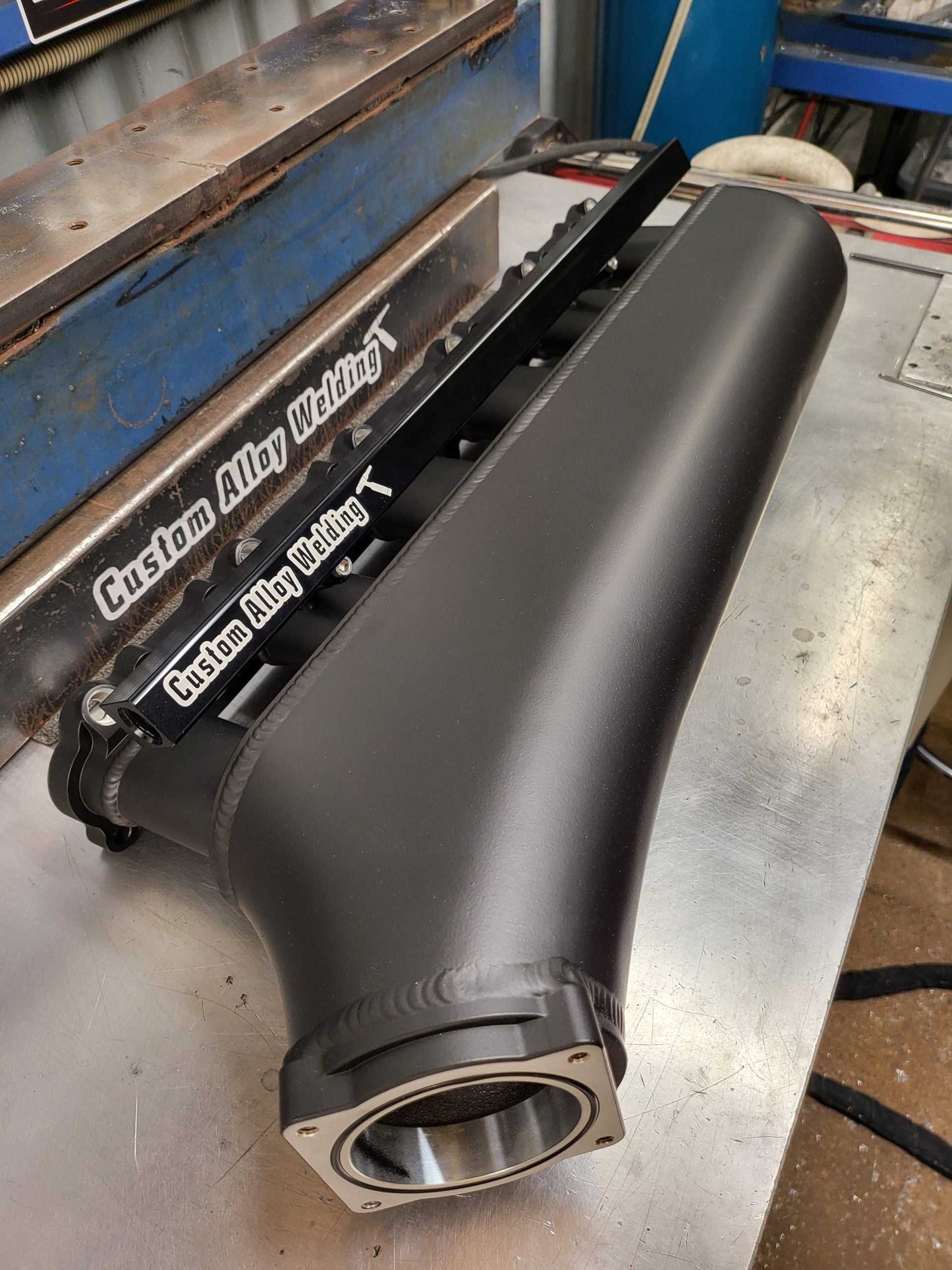

Barra Street Series Intake

Features a billet CNC machined head flange, custom oval runners, billet base plate with raised bell-mouths, 1 piece cast plenum top, o-ringed billet throttle body flange with the choice of BA/BF or FG throttle body, billet map sensor/vacuum reference block on bottom of plenum for brake booster, FPR, boost gauge etc.

The street series intake also comes with a plug and play throttle body extension loom. Made to suit FG turbo fuel rails with 3/4 or full length injectors, spacers are included for the full length injectors or can be optioned with a billet twin feed fuel rail.

The street series intake has been designed for street cars up to 1000hp, unlike most forward facing intakes that are a compromised shape to work around the metal water line, we have designed a simple relocation for the water pipe which allows a plenum shape that flows and has a throttle body position that is ideal for conversions.  Now with the choice of short, standard or long runners its even easier to choose a manifold for any conversion.

Included in the Kit:

1x Forward Facing Plenum

2x Vacuum Fittings, AN4 (-4) and AN6 (-6)

1x Standard Bolt Kit

1x Plug and Play throttle body extension loom

1x Throttle body O-ring

Optional extras:

Billet twin feed fuel rail - $200

Titanium Intake studs - $100

Powder Coating - $100

Metal Line Connection Kit:

Standard Thermostat Housing Adaptor Kit - $150

Billet Lower Thermostat Housing Kit - $300

*Important Info*

Requires the metal water pipe to be replaced with flexy hose (or metal line connection kit)

BA-FGX Falcons require the EA front facing thermostat housing and EA falcon top radiator hose.

Leave a comment on check out of which car you're installing into!
